​​Pre-pHault & Sentinel Sensor
​​​​What is pre-pHault? ​
It is a diagnostic feature s​howing the health of a mV sensor (pH, OPR or pION) on the transmitter
 ​What is the requirement?
Customer would have to purchase a SENTINEL enabled electrode, only available on SP3 sensor platform.

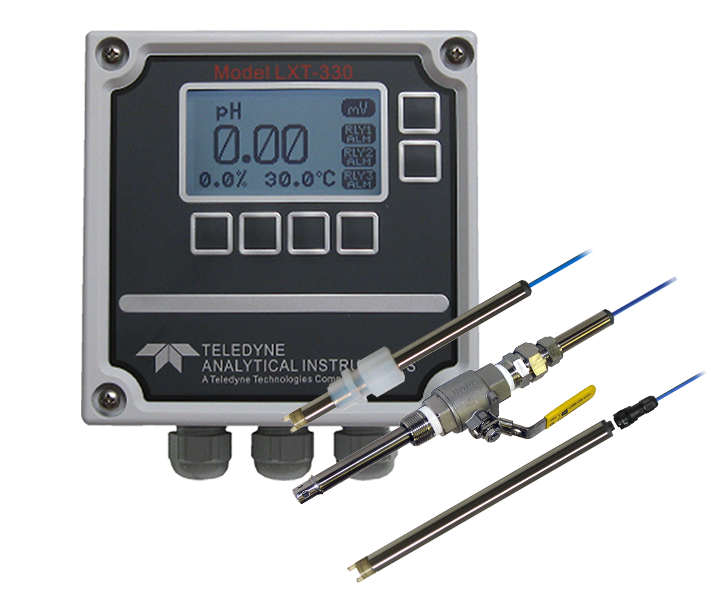

​The SENTINEL features allows the Model LXT 330 transmitter to provide Pre-pHault diagnostic information about the accuracy of a pH, ORP or pION measurement. The SENTINEL displays a filled triangular gauge that decreases proportionally to the degradation of the reference electrode, a filled gauge indicates a properly functioning measurement while the emptying gauge indicates the remaining life of the electrode. This Pre-pHault diagnostic alerts the user to potential problems and the remaining life before the measurement fails.​

The Teledyne 6 Point Advantage

  1. ​Unique Visual Sensor Life Indicator allows scheduled maintenance

  2. Output the Diagnostic Signal to avoid unscheduled down time

  3. Intelligent Pre-Calibrated Digital Sensors eliminate the need for field calibrations

  4. Application Specific Electrode Cartridges, pH, OPR and Specific Ion

  5. Submersible and Retractable Sensor Designs with various process fittings and lengths

  6. Various Industrial Housing Materials, 316 SS, Titanium and Hastelloy provide process compatibility​

LXT330 Configuration Builder (LXT-330-AB-CD-E)
​​LX​T330
​A
​B
​C​
​​D
​​E
​​​​​​​​​​​​​​1st Channel
​ ​ ​ ​ ​ ​ ​ ​
​
​
​
​
​
​
​​​​​1  SP3 Digital Sensor, p​H,​​​ ORP, pION, DO*, ppb DO, Conductivity, Resistivity, TSS, ODO
​​​​4  Internal Pre-amp, Digital to SGTC Conductivity/Resistivity (High Temp.)
​​​​​​​​​​​​​​​​​2nd Channel​
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​
​
​
​
​​
​​​0  No Second Channel
​​​1  SP3 Digital Sensor, pH, ORP, pION, DO*, ppb DO, Conductivity, Resistivity, TSS, ODO
​​​​​​​​​​​​​​Power &​ Relays
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​		​​00  (LOOP) 2 Wire - Single Channel Only
​​01  4 Wire - DC Power, No Relays
​​11  4 Wire - DC Power, (3) Relays
​​20  110/220 VAC Power, No Relays
​​21  110/220 VAC Power, (3) Relays
​​​​​​​​​Outputs
​ ​ ​ ​ ​ ​ ​ ​ ​

​0  4-20 mA & MODBUS**
​1  HART®
​2  2 x 4​-20 mA & MODBUS**
​​3  2 x 4-20 mA & HART®
​​​​​Mounting
​
​
​
​
​
​00  No Mounting Hardware
​01  Universal Mounting​ Hardware
​02  Panel Mounting Hardware
​03  Handrail Mounting Hardware
​04  Polyester Sun-Shield with Pole Mount
​​05  Polyester Sun-Shield with Rail Mount
​

* Galvanic DO must be single channel due to solution ground interference
**MODBUS - AC/DC version only​​​
